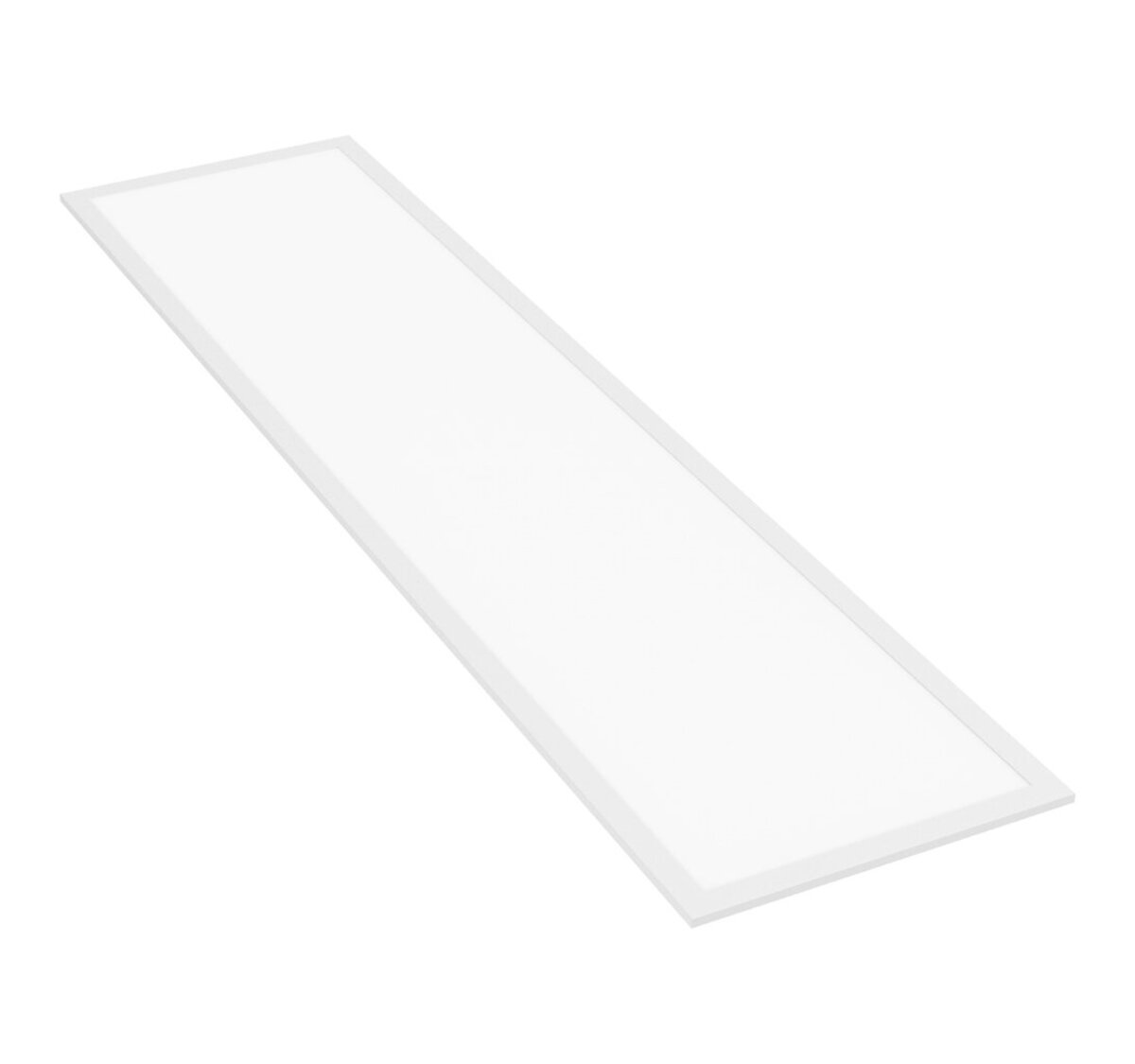

300X1200 HIGH VISUAL COMFORT LED PANEL

_ 10mm thin edgelit LED panel
_ Engineered for optimal viewing comfort: low glare UGR<19 and high chromatic rendering CRI>90
_ RAL9016 white painted finish aluminium frame
_ IP40 front / IP20 rear protection
_ Flicker-free separated driver with fast connection DC terminal
_ Optional: surface mounting, suspension or recessed KIT
_ Optional: emergency KIT with fast connection DC terminals
_ Optional: 1-10V or DALI - PUSH dimmable driver
Product family sheet
Available in the following versions
LD3PAN3853UB9 40W - 3400lm - 4000K - 90° - CRI>90 - UGR<19 -
General information
Code
LD3PAN3853UB9
EAN
8031453025045
Technical features
Power Watt
40
Lumen
3400
Kelvin
4000
Energy rating
Beam
90
Volt
220
Packaging
Packaging
1/6
Download
LDT
Technical
Sheet
Product
Technical
Instruction
Accessories
Cod.

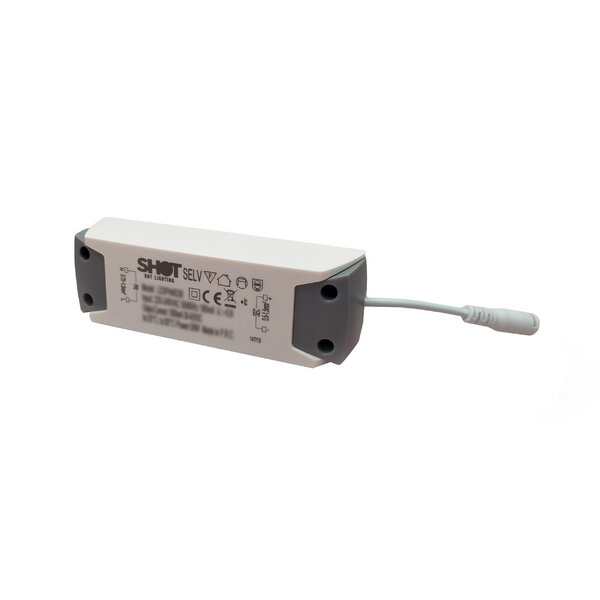

LD3PAND40
Cod.
LD3PAND42D
1-10V
Cod.
MFD-1050-46-D
Dimmable Driver DALI/Push. 700-1050mA, 23-46V
Cod.
EMK5-90-15-A
EMERGENCY
Cod.
LD3PANCAB
PENDANT
Cod.

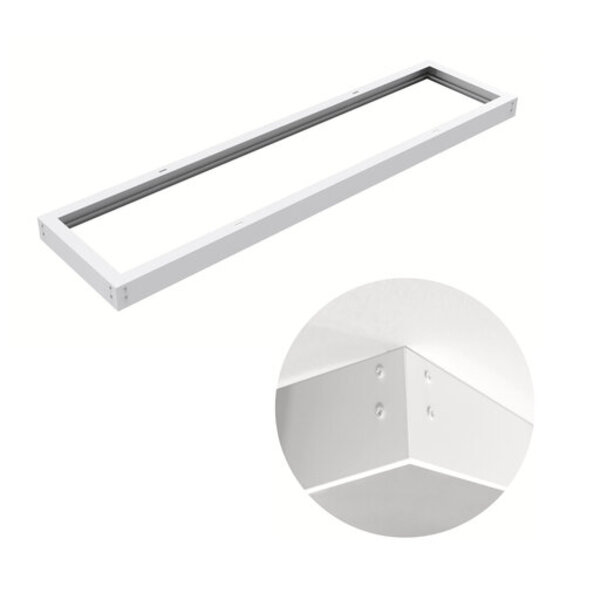

LD2PANFRM-2B
CEILING
Cod.

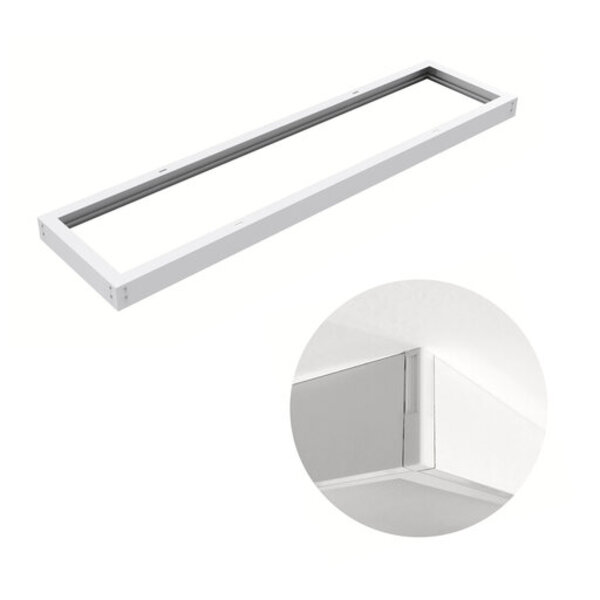

LD4PANFRMB
CEILING
Cod.
LD3PANSPG
RECESSED WITH SPRING
Cod.

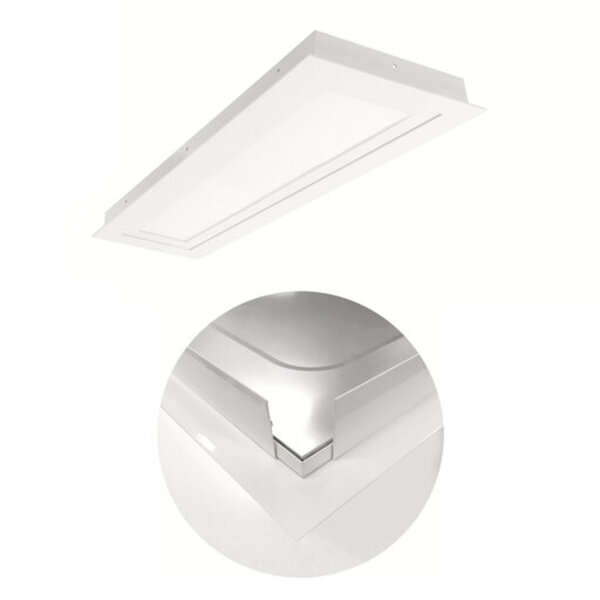

LD3PANINKB
RECESSED
