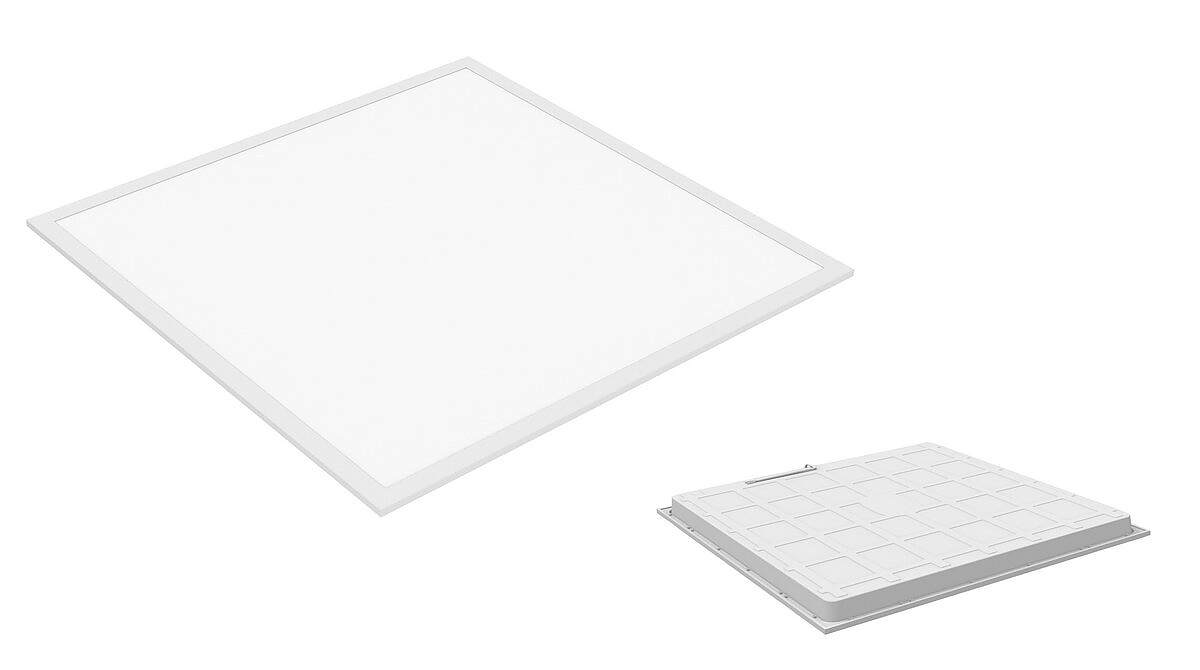

600X600 HIGH EFFICIENCY BACKLIT LED PANEL
_ Backlit LED panel
_ 140lm/W high efficiency
_ 50.000h long life
_ Low glare UGR<19 version available
_ LGP not required
_ RAL9016 white painted finish aluminium frame
_ Flicker-free separated driver with fast connection DC terminal

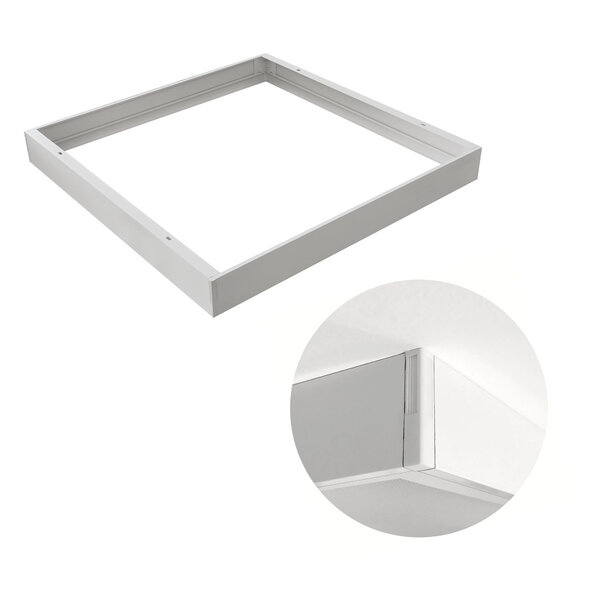

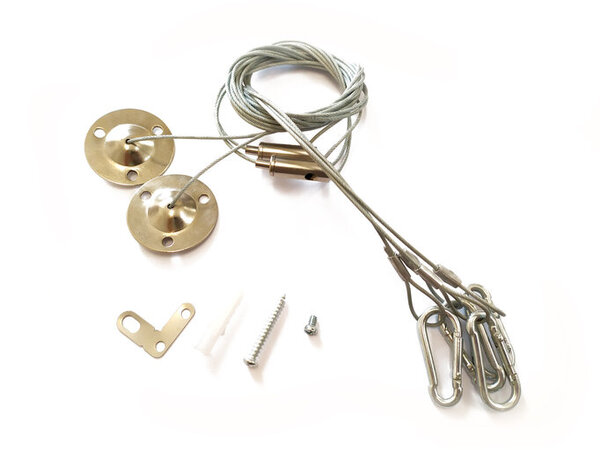

_ Optional: surface mounting, suspension or recessed KIT
_ Optional: emergency KIT with fast connection DC terminals
_ Optional: 1-10V or DALI - PUSH dimmable driver
Available in the following versions
LD4PAN2553H
25W - 3500lm - 4000K -
120° -
General information
Code
LD4PAN2553H
EAN
8031453027759
Technical features
Power Watt
25
Lumen
3500
Kelvin
4000
Energy rating
Beam
120
Volt
220
Packaging
Packaging
1/4
Download
LDT
Technical
Sheet
Sheet
Product
Technical
Instruction
LD4PAN2553HU
25W - 3500lm - 4000K -
90° - UGR<19 -
General information
Code
LD4PAN2553HU
EAN
8031453027766
Technical features
Power Watt
25
Lumen
3500
Kelvin
4000
Energy rating
Beam
90
Volt
220
Packaging
Packaging
1/4
Download
LDT
Technical
Sheet
Sheet
Product
Technical
Instruction
