•Categories • Led panels •600X600 BACKLIT LED PANEL 4000K

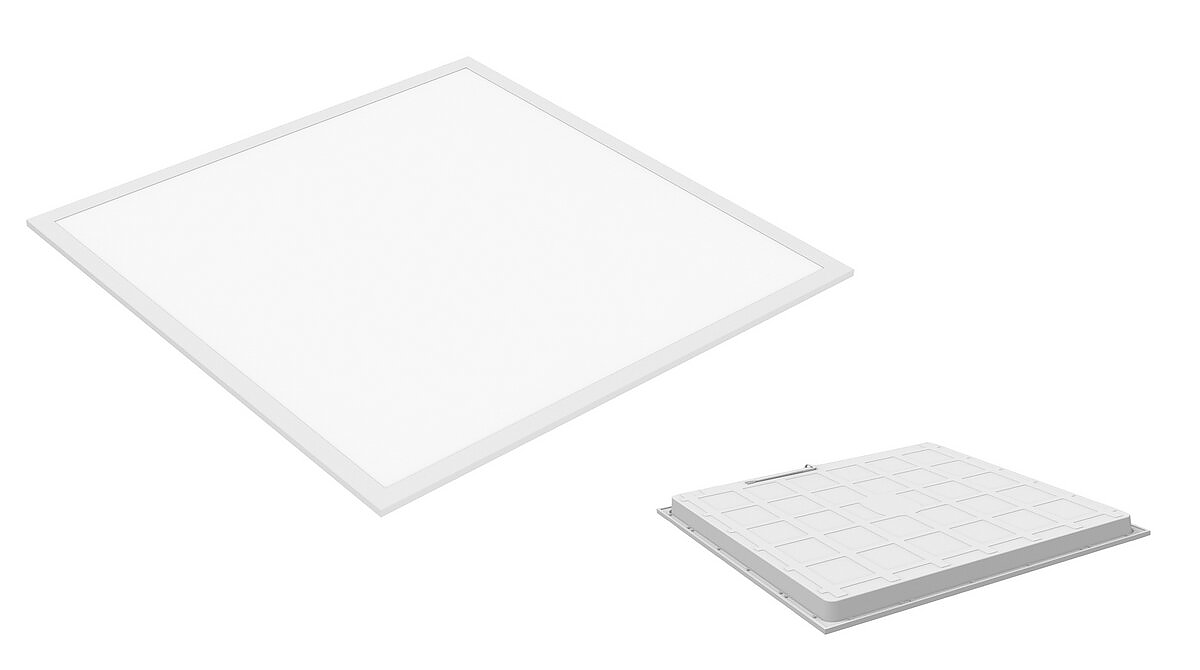

600X600 BACKLIT LED PANEL 4000K

_ Backlit LED panel
_ Low glare UGR<19 version available
_ LGP not required
_ RAL9016 white painted finish aluminium frame
_ Flicker-free separated driver with fast connection DC terminal
_ Optional: surface mounting, suspension or recessed KIT
_ Optional: emergency KIT with fast connection DC terminals
_ Optional: 1-10V or DALI - PUSH dimmable driver
Product family sheet
Available in the following versions
LD4PAN3653 36W - 3600lm - 4000K - 110° -
General information
Code
LD4PAN3653
EAN
8031453022044
Technical features
Power Watt
36
Lumen
3600
Kelvin
4000
Energy rating
Beam
110
Volt
220
Packaging
Packaging
1/4
Download
LDT
Technical
Sheet
Product
Technical
Instruction
Accessories
Cod.

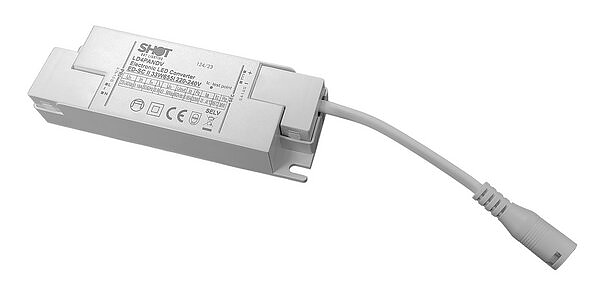

LD4PAND36
Cod.
MFD-1050-46-D
Dimmable Driver DALI/Push. 700-1050mA, 23-46V
Cod.
EMK5-90-15-A
EMERGENCY
Cod.
LD4PANCAB
PENDANT
Cod.
LD4PANFRMH
CEILING
Cod.
LD3PANINK
RECESSED
LD4PAN3653U 36W - 3240lm - 4000K - 90° - UGR<19 -
General information
Code
LD4PAN3653U
EAN
8031453024871
Technical features
Power Watt
36
Lumen
3240
Kelvin
4000
Energy rating
Beam
90
Volt
220
Packaging
Packaging
1/4
Download
LDT
Technical
Sheet
Product
Technical
Instruction
Accessories
Cod.
LD4PAND36
Cod.
MFD-1050-46-D
Dimmable Driver DALI/Push. 700-1050mA, 23-46V
Cod.
EMK5-90-15-A
EMERGENCY
Cod.
LD4PANCAB
PENDANT
Cod.
LD4PANFRMH
CEILING
Cod.
LD3PANINK
RECESSED
