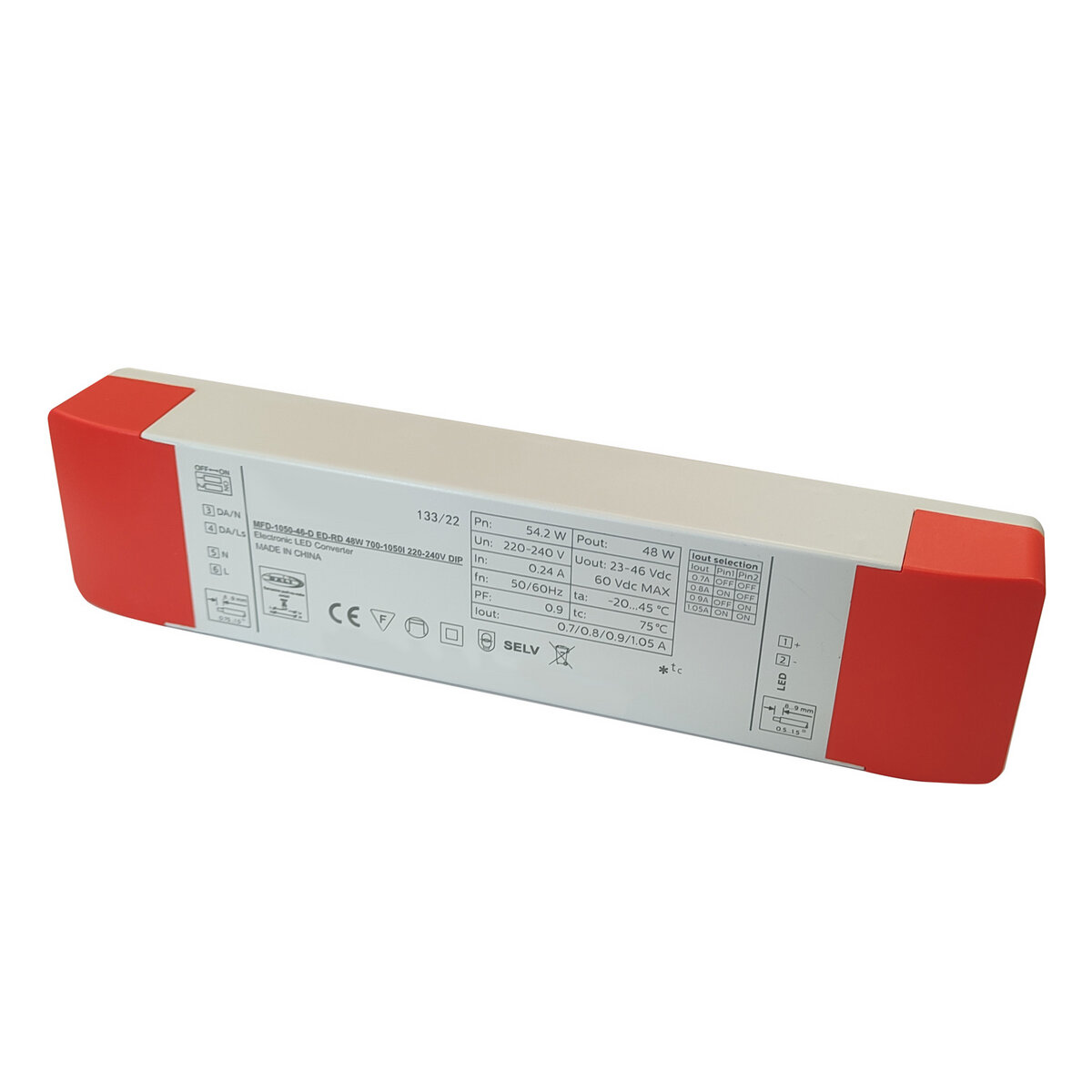

DALI/PUSH MULTIFUNCTION DRIVER
_ Constant current DRIVER usable with LED luminaires
equipped with external power supply (e.g. LED panel or Downlights)
_ Multifunction DRIVER: DALI 2 control (IEC 62386-101-102-207), PUSH DIM
_ Flicker percentage <3%
_ Output current selectable via dip-switch
_ Class II insulation, SELV according to EN 61347
_ Output voltage 23-46V
_ Rated lifetime 50,000 hours
_ Dimming range:
DALI 3% -100%
Push-DIM 3% -100%
_ Power factor > 0.95 at full power
Available in the following versions
MFD-1050-46-D
48W -
Dimmable Driver DALI/Push. 700-1050mA, 23-46V -
General information
Code
MFD-1050-46-D
EAN
8031453027742
Technical features
Power Watt
48
Volt
220
Packaging
Packaging
10/40
Download
Technical
Sheet
Sheet
Product
Technical
